| SJ6-M液压隔膜计量泵 |
 |
|
| 厂商:上海申贝泵业制造有限公司 |
|
|
| |
产品概述
性能参数
型号
Type |
流量
L/h |
最高压力MPa |
电机
15kw |
电机
22kw |
| SJ6-M-400/40(20) |
400 |
20 |
40 |
| SJ6-M-500/32(16) |
500 |
16 |
32 |
| SJ6-M-600/25(12.5) |
600 |
12.5 |
25 |
| SJ6-M-800/25(16) |
800 |
16 |
25 |
| SJ6-M-1000/20(12.5) |
1000 |
12.5 |
20 |
| SJ6-M-1250/16(10) |
1250 |
10 |
16 |
| SJ6-M-1600/12.5(8) |
1600 |
8 |
12.5 |
| SJ6-M-2000/10(6.3) |
2000 |
6.3 |
10 |
| SJ6-M-2500/8(5) |
2500 |
5 |
8 |
| SJ6-M-3200/6.3(4) |
3200 |
4 |
6.3 |
| SJ6-M-4000/5(3.2) |
4000 |
3.2 |
5 |
| SJ6-M-5000/4(2.5) |
5000 |
2.5 |
4 |
| SJ6-M-6300/3.2(2) |
6300 |
2 |
3.2 |
| SJ6-M-8000/2.5(1.6) |
8000 |
1.6 |
2.5 |
| SJ6-M-10000/2(1.25) |
10000 |
1.25 |
2 |
| SJ6-M-12500/1.6(1) |
12500 |
1 |
1.6 |
| SJ6-M-16000/1.25(0.8) |
16000 |
0.8 |
1.25 |

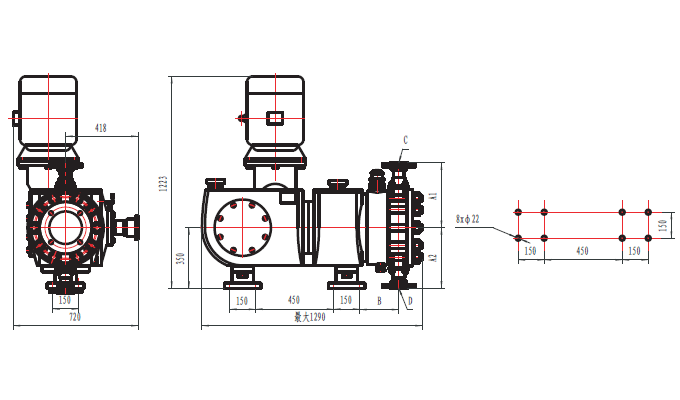

安装图 安装尺寸表
| 型号 |
A1 |
A2 |
B |
C |
D |
| SJ6-M-800/20(10) |
346 |
316 |
194 |
DN25-PN260RF GB/T9115.1 |
DN25-PN40RF(Rp) GB/T9114 |
| SJ6-M-1000/16(8) |
378 |
358 |
196 |
DN32-PN150RF(NPT) GB/T9114 |
DN32-PN40RF(Rp) GB/T9114 |
| SJ6-M-1250/12.5(6.3) |
| SJ6-M-1600/10(5) |
406 |
376 |
218 |
DN40-PN110RF(NPT) GB/T9114 |
DN40-PN40RF(Rp) GB/T9114 |
| SJ6-M-2000/8(4) |
| SJ6-M-2500/6.3(3.2) |
356 |
326 |
220 |
DN50- PN50RF(NPT) GB/T9114 |
DN40-PN50RF(Rp) GB/T9114 |
| SJ6-M-3200/5(2.5) |
| SJ6-M-4000/4(2) |
374 |
344 |
221 |
DN65- PN40RF(Rp) GB/T9114 |
DN65-PN40RF(Rp) GB/T9114 |
| SJ6-M-5000/3.2(1.6) |
| SJ6-M-6300/2.5(1.25) |
390 |
390 |
230 |
DN80- PN40RF(Rp) GB/T9114 |
DN40-PN80RF(Rp) GB/T9114 |
| SJ6-M-8000/2(1) |
| SJ6-M-10000/1.6(0.8) |
436 |
436 |
241 |
DN100- PN40RF(Rp) GB/T9114 |
DN40-PN100RF(Rp) GB/T9114 |
| SJ6-M-12500/1.6(1) |
| SJ6-M-16000/1.25(0.8) |
|
|
|
