产品概述
立式多级管道泵、GDL型，该泵是最新泵型，具有节能、占地面积小、安装方便、性能稳定等特点。外套用1Cr18Ni9Ti优质不锈钢，轴封用耐磨机械密封，无泄漏，使用寿命长。以水力平衡解决轴向力，因而泵运转平稳，低噪音，安装条件优于DL型泵，可以简便安装于任一段水平管路中间。完全能满足高层建筑、深井矿等的给排水及消防设施需要，是广大行业冷热水或一般介质、理化性质类似水等液体输送的最佳泵型。
使用温度：≤100℃，压力：≤1．6MPa(16kg／cm2)

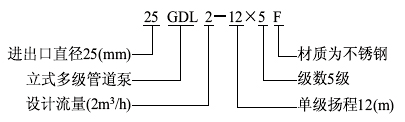

型号意义
|
型号
|
流量(m 3 /h)
|
扬程(m)
|
吸程(m)
|
电机功率(kw)
|
|
25GDL2-12*3
|
2
|
36
|
7.5
|
1.1
|
|
25GDL2-12*4
|
2
|
48
|
7.5
|
1.1
|
|
25GDL2-12*5
|
2
|
60
|
7.5
|
1.5
|
|
25GDL2-12*6
|
2
|
72
|
7.5
|
1.5
|
|
25GDL2-12*7
|
2
|
84
|
7.5
|
2.2
|
|
25GDL2-12*8
|
2
|
96
|
7.5
|
2.2
|
|
25GDL2-12*9
|
2
|
108
|
7.5
|
2.2
|
|
25GDL2-12*10
|
2
|
120
|
7.5
|
3
|
|
25GDL2-12*11
|
2
|
132
|
7.5
|
3
|
|
25GDL2-12*12
|
4
|
144
|
7.5
|
3
|
|
25GDL4-11*3
|
4
|
33
|
7.5
|
1.1
|
|
25GDL4-11*4
|
4
|
44
|
7.5
|
1.5
|
|
25GDL4-11*5
|
4
|
55
|
7.5
|
2.2
|
|
25GDL4-11*6
|
4
|
66
|
7.5
|
2.2
|
|
25GDL4-11*7
|
4
|
77
|
7.5
|
3
|
|
25GDL4-11*8
|
4
|
88
|
7.5
|
3
|
|
25GDL4-11*9
|
4
|
99
|
7.5
|
3
|
|
25GDL4-11*10
|
4
|
110
|
7.5
|
4
|
|
25GDL4-11*11
|
4
|
121
|
7.5
|
4
|
|
25GDL4-11*12
|
4
|
132
|
7.5
|
4
|
|
40GDL6-12*3
|
6
|
36
|
7.5
|
1.5
|
|
40GDL6-12*4
|
6
|
48
|
7.5
|
2.2
|
|
40GDL6-12*5
|
6
|
60
|
7.5
|
2.2
|
|
40GDL6-12*6
|
6
|
72
|
7.5
|
3
|
|
40GDL6-12*7
|
6
|
84
|
7.5
|
3
|
|
40GDL6-12*8
|
6
|
96
|
7.5
|
4
|
|
40GDL6-12*9
|
6
|
108
|
7.5
|
4
|
|
40GDL6-12*10
|
6
|
120
|
7.5
|
4
|
|
40GDL6-12*11
|
6
|
132
|
7.5
|
5.5
|
|
40GDL6-12*12
|
6
|
144
|
7.5
|
5.5
|
|
50GDL12-15*2
|
12
|
30
|
7
|
2.2
|
|
50GDL12-15*3
|
12
|
45
|
7
|
3
|
|
50GDL12-15*4
|
12
|
60
|
7
|
4
|
|
50GDL12-15*5
|
12
|
75
|
7
|
5.5
|
|
50GDL12-15*6
|
12
|
90
|
7
|
5.5
|
|
50GDL12-15*7
|
12
|
105
|
7
|
7.5
|
|
50GDL12-15*8
|
12
|
120
|
7
|
7.5
|
|
50GDL12-15*9
|
12
|
135
|
7
|
11
|
|
50GDL12-15*10
|
12
|
150
|
7
|
11
|
|
50GDL18-15*2
|
18
|
30
|
7
|
3
|
|
50GDL18-15*3
|
18
|
45
|
7
|
4
|
|
50GDL18-15*4
|
18
|
60
|
7
|
5.5
|
|
50GDL18-15*5
|
18
|
75
|
7
|
7.5
|
|
50GDL18-15*6
|
18
|
90
|
7
|
7.5
|
|
50GDL18-15*7
|
18
|
105
|
7
|
11
|
|
50GDL18-15*8
|
18
|
120
|
7
|
11
|
|
50GDL18-15*9
|
18
|
135
|
7
|
15
|
|
50GDL18-15*10
|
18
|
150
|
7
|
15
|
|
65GDL24-12*2
|
24
|
24
|
6
|
3
|
|
65GDL24-12*3
|
24
|
36
|
6
|
4
|
|
65GDL24-12*4
|
24
|
48
|
6
|
5.5
|
|
65GDL24-12*5
|
24
|
60
|
6
|
7.5
|
|
65GDL24-12*6
|
24
|
72
|
6
|
7.5
|
|
65GDL24-12*7
|
24
|
84
|
6
|
11
|
|
65GDL24-12*8
|
24
|
96
|
6
|
11
|
|
65GDL24-12*9
|
24
|
108
|
6
|
15
|
|
65GDL24-12*10
|
24
|
120
|
6
|
15
|
|
80GDL36-12*2
|
36
|
24
|
5.5
|
4
|
|
80GDL36-12*3
|
36
|
36
|
5.5
|
5.5
|
|
80GDL36-12*4
|
36
|
48
|
5.5
|
7.5
|
|
80GDL36-12*5
|
36
|
60
|
5.5
|
11
|
|
80GDL36-12*6
|
36
|
72
|
5.5
|
11
|
|
80GDL36-12*7
|
36
|
84
|
5.5
|
15
|
|
80GDL36-12*8
|
36
|
96
|
5.5
|
15
|
|
80GDL36-12*9
|
36
|
108
|
5.5
|
18.5
|
|
80GDL36-12*10
|
36
|
120
|
5.5
|
18.5
|
|
80GDL54-14*2
|
54
|
28
|
5
|
7.5
|
|
80GDL54-14*3
|
54
|
42
|
5
|
11
|
|
80GDL54-14*4
|
54
|
56
|
5
|
15
|
|
80GDL54-14*5
|
54
|
70
|
5
|
18.5
|
|
80GDL54-14*6
|
54
|
894
|
5
|
18.5
|
|
80GDL54-14*7
|
54
|
98
|
5
|
22
|
|
100GDL72-14*2
|
72
|
28
|
4.5
|
11
|
|
100GDL72-14*3
|
72
|
42
|
4.5
|
15
|
|
100GDL72-14*4
|
72
|
56
|
4.5
|
18.5
|
|
100GDL72-14*5
|
72
|
70
|
4.5
|
22
|
|
100GDL72-14*6
|
72
|
74
|
4.5
|
30
|
|
100GDL72-14*7
|
72
|
98
|
4.5
|
30
|
|
