■ ISGB型便拆式管道离心泵产品概述：
.jpg)
ISGB型便拆式管道离心泵是在ISG基础上开发成功的一种结构新颖、技术先进的泵类产品。ISGB型便拆式管道离心泵特别是在整体结构上进行大胆突破设计，采用独立轴承体、泵轴支撑、解决了原来立式泵靠电机加长轴支撑的不足之处：叶轮、泵体采用现代最优秀水力模型设计制造，消除了原立式泵轴向力大的不足之处：电机采用Y系列标准通用电机，解决原立式泵加长轴电机配套更换难的问题：同时100％的便拆结构解决了更换大功率水泵的轴承，机械密封、叶轮、泵轴的难题。

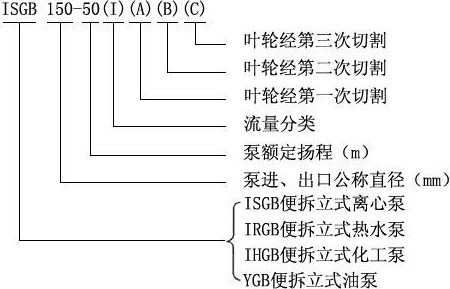

■ ISGB型便拆式管道离心泵型号意义：
■ ISGB型便拆式管道离心泵产品特点：
ISGB型便拆式管道离心泵与国内同类产品相比，具有运转更平稳，使用寿命长，配套更方便，维护保养更轻松等无可代替的优点。在立式泵系列产品中属国内首创，各项技术居国内领先，是替代ISG型立式泵、I S型离心泵、S型双吸泵等常规离心泵的最理想产品.
1、立式结构，安装调试方便，独特设计的电机和泵体采用联接体联接，同心度高、加工精度高，占地面积大大减少，缩减了建筑投资。底脚稳固、结构紧凑，精美的铸造和外观处理赋予立式离心泵新的美感，使产品焕发艺术的魅力，可以和国外著名厂家立式泵媲美.
2、配用国内著名厂家生产的低速Y系列标准通用电机，运行平稳、噪音极低.
3、轴承采用国际著名品牌精密轴承，精度高、可靠性好，寿命长.
4、叶轮采用9 0年代最优秀可自平衡轴向力的水力模型，使得泵轴承和机械密封使用寿命大大延长.
5、电机轴承座内的轴承都配有加油孔和放油孔，对轴承的维护保养十分方便.
6、可拆卸爪型弹性联轴器，使泵起动无振动、无噪音，旋转部件设有可靠的安全防护罩，安全性极好。
7、机械密封采用不锈钢、碳化钨、氟橡胶等材料制成，耐高温、高压、运行寿命长，无渗漏，对轴无磨损，保证工作环境整洁.
8、泵盖结构设计独特，只要卸下爪型弹性联轴器、泵盖螺母，即可十分轻便取出轴承座、泵盖、泵轴、叶轮等组合件，进行更换机械密封和叶轮，而不必拆卸电机、泵体和管道，维修方便快捷。
■ ISGB型便拆式管道离心泵使用条件：
1、泵系统最高工作压力为1．6MPa，即泵吸入口压力+泵扬程≤1．6MPa(泵扬程工作压力大于1．6MPa时应在订货另行提出，以便在制造时泵的过流部件和联接部件采用铸钢)。
2、输送介质为清水或物理化学性质类似清水的其它液体。(输送介质带有细小颗粒的应在订货时另行说明，以便装配耐磨式机械密封)。
3、环境温度≤40℃，海拔高度≤1000m，相对湿度≤95%。
4、液体温度:-15℃-120℃。
■ ISGB型便拆式管道离心泵结构图：
|
1
|
泵体
|
2
|
放水塞
|
3
|
叶轮
|
4
|
机械密封
|
5
|
放气阀
|
6
|
轴承体
|
7
|
轴承
|
8
|
泵轴
|
|
9
|
支架
|
10
|
机电
|
11
|
电机轴联器
|
12
|
中间轴联器
|
13
|
泵轴联器
|
14
|
油杯
|
15
|
轴承压盖
|
16
|
泵盖
|
■ ISGB型便拆式管道离心泵结构说明：
泵体：管道连接式的螺旋形泵壳，采用现代最优秀水力模型设计制造，法兰符合GB4216.5，并带有Rp1/4或Rp3/8测压口。
叶轮：闭式铸铁叶轮，优秀水力模型和特殊的结构保证泵的效率，且可靠的消除泵的轴向力。
机械密封：勇于水温150℃以下免保养，并不接受转向限制。特殊的设计保证动环的补偿性和密封性。
泵轴：优化设计的泵轴和联轴器融为一体，缩减传动轴的尺寸，使泵更安全的运行，并且使整台泵的体积减小。
泵轴体：采用进口NTN或NSK精密轴承，噪音低、寿命长。
电机：Y或Y2系列鼠笼式交流电机，型式：B5型。使用标准通用电机，维护、保养方便、快捷、大功率配有轴承润滑保养注油孔装置。
■ ISGB型便拆式管道离心泵产品用途：
ISGB型便拆式管道离心泵主要用于工业、城市高层建筑给水，消防管道增压，暖通空调冷热水循环，远距离输水以及生产工艺循环增压输送。PTHB型便拆式单级化工泵：适用于冶金、化工、纺织、木材加工、造纸及饭店、浴室、宾馆等锅炉高温热水增压循环输送及城市采暖系统供热用泵。
1、高层建筑增压送水
2、工厂系统输送
3、水处理系统加压
4、中央空调冷热水循环
5、锅炉系统输送
6、游泳池输水
7、工艺流程中增压循环
■ ISGB型便拆式管道离心泵性能参数：
|
序号
|
型号
|
流量Q
|
扬程H m
|
效率η ％
|
转速N r/min
|
电机功率 KW
|
必需汽蚀余量m
|
重量kg
|
|
m3/h
|
L/s
|
|
001
|
ISGB40-12.5
|
4.4 6.3 8.3
|
1.22 1.75 2.31
|
13.2 12.5 11.3
|
48 54 53
|
2900
|
0.55
|
2.3
|
35
|
|
002
|
ISGB40-12.5A
|
3.9 5.6 7.4
|
1.08 1.56 2.06
|
10.6 10 9
|
52
|
2900
|
0.37
|
2.3
|
35
|
|
003
|
ISGB40-20
|
4.4 6.3 8.3
|
1.22 1.75 2.31
|
21 20 18
|
41 46 43
|
2900
|
1.1
|
2.3
|
35
|
|
004
|
ISGB40-20A
|
3.9 5.6 7.4
|
1.08 1.56 2.06
|
17.6 16 14.4
|
40 45 41
|
2900
|
0.75
|
2.3
|
33
|
|
005
|
ISGB40-32
|
4.4 6.3 8.3
|
1.22 1.75 2.31
|
23 32 30
|
35 40 40
|
2900
|
2.2
|
2.3
|
50
|
|
006
|
ISGB40-32A
|
4.1 5.9 7.8
|
1.14 1.64 2.17
|
29 28 26.3
|
34 39 39
|
2900
|
1.5
|
2.3
|
45
|
|
007
|
ISGB40-32B
|
3.8 5.5 7.2
|
1.06 1.53 2.00
|
25.5 24 22.5
|
34 38 37
|
2900
|
1.1
|
2.3
|
40
|
|
008
|
ISGB40-50
|
4.4 6.3 8.3
|
1.22 1.75 2.31
|
51 50 48
|
26 33 32
|
2900
|
4.0
|
2.3
|
75
|
|
009
|
ISGB40-50A
|
4.1 5.9 7.8
|
1.14 1.64 2.17
|
45 44 42
|
20 31 30
|
2900
|
3.0
|
2.3
|
65
|
|
010
|
ISGB40-50B
|
3.7 5.3 7.0
|
1.03 1.47 1.94
|
38 36 34.5
|
29
|
2900
|
2.2
|
2.3
|
55
|
|
011
|
ISGB40-80
|
4.4 6.3 8.3
|
1.22 1.75 2.31
|
82 80 74
|
24 28 28
|
2900
|
7.5
|
2.3
|
110
|
|
012
|
ISGB40-80A
|
4.1 5.9 7.8
|
1.14 1.64 2.17
|
72 70 65
|
24 28 27
|
2900
|
5.5
|
2.3
|
105
|
|
013
|
ISGB40-80B
|
3.8 5.5 7.2
|
1.06 1.53 2.00
|
61.5 60 56
|
23 27 26
|
2900
|
5.5
|
2.3
|
80
|
|
014
|
ISGB40-12.5(I)
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
13.2 12.5 11.3
|
55 62 60
|
2900
|
1.1
|
2.3
|
35
|
|
015
|
ISGB40-12.5(I)A
|
8 11 14.5
|
2.22 3.05 4.03
|
10.6 10 9
|
60
|
2900
|
0.75
|
2.3
|
32
|
|
016
|
ISGB40-20(I)
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
21.5 20 17.8
|
49 58 57
|
2900
|
1.5
|
2.3
|
40
|
|
017
|
ISGB40-20(I)A
|
8 11 14.5
|
2.22 3.05 4.03
|
17 16 14
|
57
|
2900
|
1.1
|
2.3
|
35
|
|
018
|
ISGB40-32(I)
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
33 32 30
|
45 52 51
|
2900
|
3.0
|
2.3
|
60
|
|
019
|
ISGB40-32(I)A
|
8.2 11.7 15.2
|
2.28 3.25 4.22
|
29 28 26
|
44 51 50
|
2900
|
2.2
|
2.3
|
50
|
|
020
|
ISGB40-32(I)B
|
7.3 10.4 13.5
|
2.38 2.89 3.75
|
26 24 20
|
50
|
2900
|
1.5
|
2.3
|
45
|
|
021
|
ISGB40-50(I)
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
51.2 50 48
|
38 46 46
|
2900
|
5.5
|
2.3
|
90
|
|
022
|
ISGB40-50(I)A
|
8.3 11.7 15.3
|
2.31 3.25 4.25
|
45 44 42
|
37 46 45
|
2900
|
4.0
|
2.3
|
80
|
|
023
|
ISGB40-50(I)B
|
7.5 10.6 13.8
|
2.08 2.94 3.83
|
37 36 34
|
40
|
2900
|
3.0
|
2.3
|
70
|
|
024
|
ISGB40-80(I)
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
81.2 80 77.5
|
31 38 40
|
2900
|
11.0
|
2.3
|
150
|
|
025
|
ISGB40-80(I)A
|
8.2 11.6 15.2
|
2.28 3.22 4.22
|
71 70 68
|
38
|
2900
|
7.5
|
2.3
|
100
|
|
026
|
ISGB40-80(I)B
|
7.6 10.8 14
|
2.11 3.0 3.89
|
61.4 60 58
|
37
|
2900
|
7.5
|
2.3
|
95
|
|
027
|
ISGB40-80(I)C
|
7.1 10.1 13.1
|
1.97 2.87 3.64
|
53.2 52 50.4
|
36
|
2900
|
5.5
|
2.3
|
90
|
|
028
|
ISGB50-12.5
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
13.6 12.5 11.3
|
55 62 60
|
2900
|
1.1
|
2.3
|
40
|
|
029
|
ISGB50-12.5A
|
8 11 14.5
|
2.22 3.05 4.03
|
11 10 9
|
60
|
2900
|
0.75
|
2.3
|
35
|
|
030
|
ISGB50-20
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
21.5 20 17.8
|
49 58 57
|
2900
|
1.5
|
2.3
|
45
|
|
031
|
ISGB50-20A
|
8 11 14.5
|
2.22 3.05 4.03
|
17 16 14
|
57
|
2900
|
1.1
|
2.3
|
40
|
|
032
|
ISGB50-32
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
33 32 30
|
45 52 51
|
2900
|
3.0
|
2.3
|
60
|
|
033
|
ISGB50-32A
|
8.2 11.7 15.2
|
2.28 3.25 4.22
|
29 28 26
|
44 51 50
|
2900
|
2.2
|
2.3
|
50
|
|
034
|
ISGB50-32B
|
7.3 10.4 13.5
|
2.38 2.89 3.75
|
23 22 20.5
|
50
|
2900
|
1.5
|
2.3
|
46
|
|
035
|
ISGB50-50
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
52 50 48
|
38 46 46
|
2900
|
5.5
|
2.3
|
405
|
|
036
|
ISGB50-50A
|
8.3 11.7 15.3
|
2.31 3.25 4.25
|
45.8 44 42
|
37 45 45
|
2900
|
4.0
|
2.3
|
85
|
|
037
|
ISGB50-50B
|
7.5 10.6 13.8
|
2.08 2.94 3.83
|
40 38 35
|
44
|
2900
|
3.0
|
2.3
|
70
|
|
038
|
ISGB50-80
|
8.8 12.5 16.3
|
2.44 3.47 4.53
|
82 80 77.5
|
29 38 40
|
2900
|
11.0
|
2.3
|
160
|
|
039
|
ISGB50-80A
|
8.2 11.6 15.2
|
2.28 3.22 4.22
|
71.5 70 68
|
29 38 41
|
2900
|
7.5
|
2.3
|
120
|
|
040
|
ISGB50-80B
|
7.6 10.8 14
|
2.11 3.0 3.89
|
61.5 60 58
|
27.5 37 40
|
2900
|
7.5
|
2.3
|
115
|
|
041
|
ISGB50-80C
|
7.1 10.0 13.1
|
1.97 2.78 3.64
|
53.2 52 50.4
|
27 36 39
|
2900
|
5.5
|
2.3
|
110
|
|
042
|
ISGB50-12.5(I)
|
17.5 25 32.5
|
4.86 6.97 9.03
|
13.7 12.5 10.5
|
67 69 69
|
2900
|
1.5
|
2.5
|
45
|
|
043
|
ISGB50-12.5(I)A
|
15.6 22.3 29
|
4.3 6.19 8.1
|
11 10 8.4
|
65 67 68
|
2900
|
1.1
|
2.5
|
40
|
|
044
|
ISGB50-20(I)
|
17.5 25 32.5
|
4.86 6.94 9.03
|
21.5 20 18
|
60 68 67
|
2900
|
3.0
|
2.5
|
60
|
|
045
|
ISGB50-20(I)A
|
15.6 22.3 29
|
1.33 6.19 8.1
|
17.5 16 13.6
|
58 66 65
|
2900
|
2.2
|
2.5
|
50
|
|
046
|
ISGB50-32(I)
|
17.5 25 32.5
|
4.86 6.94 9.03
|
34.4 32 27.5
|
55 63 60
|
2900
|
4.0
|
2.5
|
75
|
|
047
|
ISGB50-32(I)A
|
16.4 23.4 30.4
|
4.56 6.5 8.44
|
30 28 24
|
54 62 59
|
2900
|
4.0
|
2.5
|
75
|
|
048
|
ISGB50-32(I)B
|
15.0 21.6 28
|
4.17 6.0 7.78
|
26 24 20.6
|
61
|
2900
|
3.0
|
2.5
|
65
|
|
049
|
ISGB50-50(I)
|
17.5 25 32.5
|
4.86 6.94 9.03
|
52.7 50 45.5
|
49 58 59
|
2900
|
7.5
|
2.5
|
110
|
|
050
|
ISGB50-50(I)A
|
16.4 23.5 30.5
|
4.56 6.53 8.47
|
46.4 44 40
|
48 57 58
|
2900
|
7.5
|
2.5
|
110
|
|
051
|
ISGB50-50(I)B
|
15.2 21.8 28.3
|
4.22 6.06 7.86
|
40.5 38 34.5
|
55
|
2900
|
5.5
|
2.5
|
100
|
|
052
|
ISGB50-80(I)
|
17.5 25 32.5
|
4.86 6.94 9.03
|
82 80 76.5
|
39 50 52
|
2900
|
15.0
|
2.5
|
175
|
|
053
|
ISGB50-80(I)A
|
16.4 23.4 30.5
|
4.56 6.5 8.47
|
71.5 70 67
|
39 51 52
|
2900
|
11.0
|
2.5
|
165
|
|
054
|
ISGB50-80(I)B
|
15 21.6 28
|
4.17 6.0 7.78
|
61 60 58
|
38 50 54
|
2900
|
11.0
|
2.5
|
165
|
|
055
|
ISGB50-125(I)
|
17.3 25 32.5
|
4.6 6.94 9.03
|
128 125 122
|
31 40 44
|
2900
|
30.0
|
2.5
|
310
|
|
056
|
ISGB50-125(I)A
|
16.6 23.7 31
|
4.61 6.58 8.6
|
115 113 110
|
30 40 44
|
2900
|
22.0
|
2.5
|
250
|
|
057
|
ISGB50-125(I)
|
15.7 22.5 29.2
|
4.36 6.25 8.0
|
103 101 98
|
39
|
2900
|
18.5
|
2.5
|
215
|
|
058
|
ISGB50-125(I)C
|
14.4 20.6 26.8
|
4.0 5.72 7.44
|
86 85 83
|
38
|
2900
|
15.0
|
2.5
|
195
|
|
059
|
ISGB65-12.5
|
17.5 25 32.5
|
4.86 6.94 9.03
|
13.7 12.5 10.5
|
67 69 69
|
2900
|
1.5
|
2.5
|
45
|
|
060
|
ISGB65-12.5A
|
15.6 22.3 29
|
4.3 6.19 8.1
|
11 10 8.4
|
65 67 68
|
2900
|
1.1
|
2.5
|
40
|
|
061
|
ISGB65-20
|
17.5 25 32.5
|
4.86 6.94 9.03
|
22 20 18
|
60 68 67
|
2900
|
3.0
|
2.5
|
60
|
|
062
|
ISGB65-20A
|
15.6 22.3 29
|
4.33 6.19 8.1
|
17.5 16 14.4
|
58 66 65
|
2900
|
2.2
|
2.5
|
50
|
|
063
|
ISGB65-32
|
17.5 25 32.5
|
4.86 6.94 9.03
|
34.4 32 27.5
|
54 63 60
|
2900
|
4.0
|
2.5
|
75
|
|
064
|
ISGB65-32A
|
16.4 23.4 30.1
|
4.56 6.5 8.44
|
30 28 24.5
|
54 62 59
|
2900
|
4.0
|
2.5
|
75
|
|
065
|
ISGB65-32B
|
15 21.6 28
|
4.17 6.0 7.78
|
26 24 21
|
51 61 60
|
2900
|
3.0
|
2.5
|
65
|
|
066
|
ISGB65-50
|
17.5 25 32.5
|
4.86 6.94 9.03
|
52.7 50 45.5
|
49 58 59
|
2900
|
7.
|
2.5
|
110
|
|
067
|
ISGB65-50A
|
16.4 23.5 30.5
|
4.56 6.53 8.47
|
46.4 44 40
|
48 57 58
|
2900
|
57.
|
2.5
|
110
|
|
068
|
ISGB65-50
|
15.2 21.8 28.3
|
4.22 6.06 7.86
|
40.5 38 34
|
55
|
2900
|
55.5
|
2.5
|
100
|
|
069
|
ISGB65-80
|
17.5 25 32.5
|
4.86 6.94 9.03
|
82 80 76.5
|
39 50 52
|
2900
|
15.0
|
2.5
|
185
|
|
070
|
ISGB65-80A
|
16.4 23.4 30.5
|
4.56 6.5 8.47
|
71.5 70 67
|
39 50 52
|
2900
|
11.0
|
2.5
|
170
|
|
071
|
ISGB65-80B
|
15 21.6 28
|
4.17 6.0 7.78
|
61 60 58
|
38 49 54
|
2900
|
11.0
|
2.5
|
170
|
|
072
|
ISGB65-125
|
17.5 25 32.5
|
4.86 6.94 9.03
|
127 125 122
|
32 40 44
|
2900
|
30.0
|
2.5
|
320
|
|
073
|
ISGB65-125A
|
16.6 23.7 31
|
4.61 6.58 8.6
|
115 113 110
|
32 40 44
|
2900
|
22.0
|
2.5
|
260
|
|
074
|
ISGB65-125B
|
15.7 22.5 29.2
|
4.36 6.25 8.0
|
103 101 98
|
39
|
2900
|
18.5
|
2.5
|
225
|
|
075
|
ISGB65-125C
|
14.4 20.6 26.8
|
4.0 5.72 7.44
|
86 85 83
|
38
|
2900
|
15.0
|
2.5
|
210
|
|
076
|
ISGB65-12.5(I)
|
35 50 65
|
9.72 13.9 18.1
|
13.8 12.5 10
|
67 73 70
|
2900
|
3.0
|
3.0
|
65
|
|
077
|
ISGB65-12.5(I)A
|
31.3 44.7 58
|
8.7 12.4 16.1
|
11 10 8
|
66 72 69
|
2900
|
2.2
|
3.0
|
55
|
|
078
|
ISGB65-20(I)
|
35 50 65
|
9.72 13.9 18.1
|
22 20 17
|
67 72.5 70
|
2900
|
5.5
|
3.0
|
100
|
|
079
|
ISGB65-20(I)A
|
31.3 45 58
|
8.7 12.5 16.1
|
17.5 16 13.6
|
60 71 69
|
2900
|
4.0
|
3.0
|
80
|
|
080
|
ISGB65-32(I)
|
35 50 65
|
9.72 13.9 18.1
|
35 32 28
|
63 71 70
|
2900
|
7.5
|
3.0
|
105
|
|
081
|
ISGB65-32(I)A
|
32.7 46.7 61
|
9.1 13.0 16.9
|
30.6 28 25
|
62 70 69
|
2900
|
7.5
|
3.0
|
105
|
|
082
|
ISGB65-32(I)B
|
30.0 43.3 56.3
|
8.4 12.0 15.6
|
26 24 21
|
69
|
2900
|
5.5
|
3.0
|
95
|
|
083
|
ISGB65-50(I)
|
35 50 65
|
9.72 13.9 18.1
|
53.5 50 46
|
55 67 68
|
2900
|
15.0
|
3.0
|
180
|
|
084
|
ISGB65-50(I)A
|
32.8 47 61
|
9.1 13.1 16.9
|
47 44 40
|
54 66 67
|
2900
|
11.0
|
3.0
|
165
|
|
085
|
ISGB65-50(I)B
|
30.5 43.5 56.6
|
8.5 12.1 15.7
|
40.6 38 33.4
|
65
|
2900
|
7.5
|
3.0
|
115
|
|
086
|
ISGB65-80(I)
|
35 50 65
|
9.7 13.9 18.1
|
83 80 72
|
52 59 60
|
2900
|
22.0
|
3.0
|
235
|
|
087
|
ISGB65-80(I)A
|
32.5 46.7 61
|
9.0 13.0 16.9
|
73 70 63
|
52 59 60
|
2900
|
18.5
|
3.0
|
205
|
|
088
|
ISGB65-80(I)B
|
30 43.3 56
|
8.3 12.0 15.6
|
63 60 54
|
58
|
2900
|
15.0
|
3.0
|
180
|
|
089
|
ISGB65-125(I)
|
35 50 65
|
9.72 13.9 18.1
|
128 125 121
|
44 54 57
|
2900
|
37.0
|
3.0
|
350
|
|
090
|
ISGB65-125(I)A
|
32.5 46.5 60.5
|
9.0 12.9 16.8
|
116 113 110
|
43 54 57
|
2900
|
30.0
|
3.0
|
335
|
|
091
|
ISGB65-125(I)B
|
31 44.5 58
|
8.6 12.4 16.1
|
103 101 97
|
40 53 56
|
2900
|
30.0
|
3.0
|
335
|
|
092
|
ISGB65-125(I)C
|
29 41 43.6
|
8.1 11.4 14.9
|
87 85 83
|
39 51 55
|
2900
|
22.0
|
3.0
|
270
|
|
093
|
ISGB80-12.5
|
35 50 65
|
9.72 13.9 18.1
|
13.8 12.5 10
|
67 73 70
|
2900
|
3.0
|
3.0
|
65
|
|
094
|
ISGB80-12.5A
|
31.3 44.7 58
|
8.7 12.5 16.1
|
11 10 8
|
66 72 69
|
2900
|
2.2
|
3.0
|
60
|
|
095
|
ISGB80-20
|
35 50 65
|
9.72 13.9 18.1
|
22 20 17
|
67 72.5 70
|
2900
|
5.5
|
3.0
|
100
|
|
096
|
ISGB80-20A
|
31.3 45 58
|
8.7 12.5 16.1
|
17.5 16 13.6
|
66 71 69
|
2900
|
4.0
|
3.0
|
80
|
|
097
|
ISGB80-32
|
35 50 65
|
9.72 13.9 18.1
|
35 32 28
|
63 71 70
|
2900
|
7.5
|
3.0
|
105
|
|
098
|
ISGB80-32A
|
32.7 46.7 61
|
9.1 13.0 16.9
|
30.6 28 25
|
62 70 69
|
2900
|
7.5
|
3.0
|
105
|
|
099
|
ISGB80-32B
|
30.3 43.3 56.3
|
8.4 12.0 15.6
|
27 24 20
|
69
|
2900
|
5.5
|
3.0
|
100
|
|
100
|
ISGB80-50
|
35 50 65
|
9.72 13.9 18.1
|
53.3 50 46
|
55 67 68
|
2900
|
15.0
|
3.0
|
175
|
|
101
|
ISGB80-50A
|
32.8 47 61
|
9.1 13.1 16.9
|
47 44 40
|
54 66 67
|
2900
|
11.0
|
3.0
|
170
|
|
102
|
ISGB80-50B
|
30.5 43.5 56.6
|
8.5 12.1 15.7
|
40.6 38 33.4
|
53 65 67
|
2900
|
7.5
|
3.0
|
120
|
|
103
|
ISGB80-80
|
35 50 65
|
9.72 13.9 18.1
|
83 80 72
|
52 59 60
|
2900
|
22.0
|
3.0
|
240
|
|
104
|
ISGB80-80A
|
32.5 46.7 61
|
9.0 13.0 16.9
|
73 70 64
|
52 59 60
|
2900
|
18.5
|
3.0
|
210
|
|
105
|
ISGB80-80B
|
30 43.3 56
|
8.3 12.0 15.6
|
63 60 54
|
58
|
2900
|
15.0
|
3.0
|
190
|
|
106
|
ISGB80-125
|
35 50 65
|
9.72 13.9 18.1
|
128 125 122
|
43 54 57
|
2900
|
37.0
|
3.0
|
360
|
|
107
|
ISGB80-125A
|
32.5 46.5 60.5
|
9 12.9 16.8
|
116 113 110
|
42 53 56
|
2900
|
30.0
|
3.0
|
345
|
|
108
|
ISGB80-125B
|
31 44.5 58
|
8.6 12.4 16.1
|
103 101 97
|
53
|
2900
|
30.0
|
3.0
|
340
|
|
109
|
ISGB80-125C
|
29 41 53.6
|
8.1 11.4 14.9
|
98 85 83
|
51
|
2900
|
22.0
|
3.0
|
375
|
|
110
|
ISGB80-12.5(I)
|
70 100 130
|
19.4 27.8 36.1
|
13.6 12.5 11
|
66 76 75
|
2900
|
5.5
|
4.5
|
110
|
|
111
|
ISGB80-12.5(I)A
|
62.6 89 116
|
17.4 24.7 32.2
|
11 10 8.8
|
64 74 74
|
2900
|
4.0
|
4.5
|
85
|
|
112
|
ISGB80-20(I)
|
70 100 130
|
19.4 27.8 36.1
|
23.5 20 14
|
70 76 72
|
2900
|
11.0
|
4.5
|
165
|
|
113
|
ISGB80-20(I)A
|
62.6 89 116
|
17.4 24.7 32.2
|
19 16 11
|
68 74 65
|
2900
|
7.5
|
4.5
|
130
|
|
114
|
ISGB80-32(I)
|
70 100 130
|
19.4 27.8 36.1
|
36.5 32 24
|
70 76 65
|
2900
|
15.0
|
4.5
|
185
|
|
115
|
ISGB80-32(I)A
|
65.4 93.5 121.6
|
18.2 26.0 33.8
|
32 28 21
|
68 74 67
|
2900
|
11.0
|
4.5
|
175
|
|
116
|
ISGB80-32(I)B
|
60.6 86.6 112.5
|
16.8 24.1 31.3
|
27 24 18
|
72
|
2900
|
11.0
|
4.5
|
175
|
|
117
|
ISGB80-50(I)
|
70 100 130
|
19.4 27.8 36.1
|
54 50 42
|
65 74 73
|
2900
|
22.0
|
4.5
|
250
|
|
118
|
ISGB80-50(I)A
|
65.4 93.5 121.6
|
18.2 26.4 33.8
|
47.5 44 39
|
64 73 72
|
2900
|
18.5
|
4.5
|
220
|
|
119
|
ISGB80-50(I)B
|
61 87 113
|
16.9 24.2 31.4
|
41 38 32
|
71
|
2900
|
15.0
|
4.5
|
200
|
|
120
|
ISGB80-80(I)
|
70 100 130
|
19.4 27.8 36.1
|
87 80 68
|
62 69 68
|
2900
|
37.0
|
4.5
|
330
|
|
121
|
ISGB80-80(I)A
|
65.4 93.5 121.6
|
18.2 26.0 33.8
|
76 70 59.5
|
61 68 67
|
2900
|
30.0
|
4.5
|
315
|
|
122
|
ISGB80-80(I)B
|
61 87 113
|
16.9 24.2 31.4
|
65 60 51
|
66
|
2900
|
30.0
|
4.5
|
315
|
|
123
|
ISGB80-125(I)
|
70 100 130
|
19.4 27.8 36.1
|
132 125 114
|
55 66 67
|
2900
|
75.0
|
4.5
|
675
|
|
124
|
ISGB80-125(I)A
|
66.5 95 123.6
|
18.5 26.4 34.3
|
119 113 104
|
55 66 67
|
2900
|
55.0
|
4.5
|
535
|
|
125
|
ISGB80-125(I)B
|
63 90 117
|
17.5 25 32.5
|
106.6 101 92
|
65
|
2900
|
45.0
|
4.0
|
425
|
|
126
|
ISGB80-125(I)C
|
58 82 107
|
16.1 22.8 29.7
|
90 85 76
|
63
|
2900
|
37.0
|
4.0
|
370
|
|
127
|
ISGB100-12.5
|
70 100 130
|
19.4 27.8 36.1
|
13.6 12.5 11
|
66 76 75
|
2900
|
5.5
|
4.5
|
115
|
|
128
|
ISGB100-12.5A
|
62.6 89 116
|
17.4 24.7 32.2
|
11 10 8.8
|
64 74 74
|
2900
|
4.0
|
4.5
|
90
|
|
129
|
ISGB100-20
|
70 100 130
|
19.4 27.8 36.1
|
23.5 20 14
|
70 76 65
|
2900
|
11.0
|
4.5
|
170
|
|
130
|
ISGB100-20A
|
62.6 89 116
|
17.4 24.7 32.2
|
19 16 11
|
68 74 63
|
2900
|
7.5
|
4.5
|
120
|
|
131
|
ISGB100-32
|
70 100 130
|
19.4 27.8 36.1
|
36.5 32 24
|
70 76 65
|
2900
|
15.0
|
4.5
|
200
|
|
132
|
ISGB100-32A
|
65.4 93.5 121.6
|
18.2 26.0 33.8
|
32 28 21
|
68 74 67
|
2900
|
11.0
|
4.5
|
185
|
|
133
|
ISGB100-32B
|
60.6 86.6 112.5
|
16.8 24.1 31.3
|
27 24 18
|
72
|
2900
|
11.0
|
4.5
|
180
|
|
134
|
ISGB100-50
|
70 100 130
|
19.4 27.8 36.1
|
54 50 42
|
65 74 73
|
2900
|
22.0
|
4.0
|
245
|
|
135
|
ISGB100-50A
|
65.4 93.5 121.6
|
18.2 26.0 33.8
|
47.5 44 37
|
64 73 72
|
2900
|
18.5
|
4.0
|
215
|
|
136
|
ISGB100-50B
|
61 87 113
|
16.9 24.2 31.4
|
41 38 34
|
71
|
2900
|
15.0
|
4.0
|
195
|
|
137
|
ISGB100-80
|
70 100 130
|
19.4 27.8 36.1
|
87 80 68
|
62 69 68
|
2900
|
37.0
|
4.0
|
345
|
|
138
|
ISGB100-80A
|
65.4 93.5 121.6
|
18.2 26.0 33.8
|
76 70 59.5
|
61 68 67
|
2900
|
30.0
|
4.0
|
330
|
|
139
|
ISGB100-80B
|
61 87 113
|
16.9 24.2 31.4
|
65 60 51
|
67
|
2900
|
30.0
|
4.0
|
330
|
|
140
|
ISGB100-125
|
70 100 130
|
19.4 27.8 36.1
|
132 125 114
|
55 66 67
|
2900
|
75.0
|
4.0
|
685
|
|
141
|
ISGB100-125A
|
66.5 95 123.6
|
18.5 26.4 34.3
|
119 113 104
|
55 66 67
|
2900
|
55.0
|
4.0
|
550
|
|
142
|
ISGB100-125
|
63 90 117
|
17.5 25.0 32.5
|
106.6 101 92
|
65
|
2900
|
45.0
|
4.0
|
440
|
|
143
|
ISGB100-125C
|
58 82 107
|
16.1 22.8 29.7
|
90 85 76
|
63
|
2900
|
37.0
|
4.0
|
385
|
|
144
|
ISGB125-12.5
|
96 160 192
|
26.7 44.4 53.3
|
13 12.5 12
|
78 82 84
|
2900
|
11.0
|
4.0
|
180
|
|
145
|
ISGB125-12.5A
|
86 143 172
|
23.9 39.7 47.8
|
10.4 10 9.6
|
77
|
2900
|
7.5
|
4.0
|
130
|
|
146
|
ISGB125-20
|
96 160 192
|
26.7 44.4 53.3
|
22.6 20 17
|
76 80 78
|
2900
|
15.0
|
4.0
|
225
|
|
147
|
ISGB125-20A
|
86 143 172
|
23.9 39.7 47.8
|
18 16 13.6
|
73 77 75
|
2900
|
11.0
|
4.0
|
210
|
|
148
|
ISGB125-32
|
96 160 192
|
26.7 44.4 53.3
|
36 32 28
|
78
|
2900
|
22.0
|
4.0
|
265
|
|
149
|
ISGB125-32A
|
90 150 180
|
25 41.7 50
|
31.5 28 24.5
|
76
|
2900
|
18.5
|
4.0
|
230
|
|
150
|
ISGB125-32
|
83 138 166
|
21.7 38.3 46.1
|
27 24 21
|
73
|
2900
|
15.0
|
4.0
|
215
|
|
151
|
ISGB125-50
|
96 160 192
|
26.7 44.4 53.3
|
55 50 46
|
69 79 78
|
2900
|
37.0
|
5.0
|
400
|
|
152
|
ISGB125-50A
|
90 150 180
|
25 41.7 50
|
48.4 44 40.5
|
64 74 73
|
2900
|
30.0
|
5.0
|
380
|
|
153
|
ISGB125-50B
|
83 138 166
|
21.8 38.3 46.1
|
41.3 37.5 34.5
|
72
|
2900
|
22.0
|
5.0
|
325
|
|
154
|
ISGB125-80
|
96 160 192
|
26.7 44.4 53.3
|
87 80 73
|
65 77 74
|
2900
|
55.0
|
4.5
|
580
|
|
155
|
ISGB125-80A
|
90 150 180
|
25 41.7 50
|
76 70 64
|
74
|
2900
|
45.0
|
4.5
|
495
|
|
156
|
ISGB125-80B
|
83 138 166
|
21.7 38.3 46.1
|
65 60 55
|
73
|
2900
|
37.0
|
4.5
|
430
|
|
157
|
ISGB125-125
|
96 160 192
|
26.7 44.7 53.3
|
133 125 119
|
70 72 68
|
2900
|
90.0
|
4.5
|
800
|
|
158
|
ISGB125-125A
|
90 150 180
|
25 41.7 50
|
117 110 104.6
|
65 70 71
|
2900
|
75.0
|
4.5
|
715
|
|
159
|
ISGB125-125B
|
86 143 172
|
23.8 39.7 47.8
|
106.4 100 95.2
|
65 69 66
|
2900
|
75.0
|
4.5
|
710
|
|
160
|
ISGB125-125C
|
80.5 134 161
|
22.4 37.2 44.7
|
96 88 86
|
68
|
2900
|
55.0
|
4.5
|
590
|
|
161
|
ISGB125-32(I)
|
120 200 240
|
33.3 55.6 66.7
|
35 32 28
|
64 76 75
|
2900
|
30.0
|
4.5
|
325
|
|
162
|
ISGB125-32(I)A
|
112 187 224
|
31.1 51.9 62.2
|
31.5 28 24
|
63 75 75
|
2900
|
22.0
|
4.5
|
295
|
|
163
|
ISGB125-50(I)
|
120 200 240
|
33.3 55.6 66.7
|
55 50 46
|
63 74 73
|
2900
|
45.0
|
4.5
|
430
|
|
164
|
ISGB125-50(I)A
|
112 187 224
|
31.1 51.9 62.2
|
48.4 44 40
|
62 73 73
|
2900
|
37.0
|
4.5
|
420
|
|
165
|
ISGB125-50(I)B
|
104 173 208
|
28.9 48.1 57.8
|
41 37 34.5
|
61 72 73
|
2900
|
30.0
|
4.5
|
410
|
|
166
|
ISGB125-80(I)
|
120 200 240
|
33.3 55.6 66.7
|
87 80 72
|
65 76 74
|
2900
|
75.0
|
4.5
|
685
|
|
167
|
ISGB125-80(I)A
|
112 187 224
|
31.1 51.9 62.2
|
76 70 63
|
64 75 73
|
2900
|
55.0
|
4.5
|
545
|
|
168
|
ISGB125-80(I)B
|
104 173 208
|
28.9 48.1 57.8
|
65 60 54
|
63 74 72
|
2900
|
45.0
|
4.5
|
460
|
|
169
|
ISGB125-125(I)
|
120 200 240
|
33.3 55.6 66.7
|
133 125 120
|
58 73 75
|
2900
|
110.0
|
4.5
|
950
|
|
170
|
ISGB125-125(I)A
|
112 187 224
|
31.1 51.9 62.2
|
116 110 105
|
57 72 74
|
2900
|
90.0
|
4.5
|
785
|
|
171
|
ISGB125-125(I)B
|
104 173 208
|
28.9 48.1 57.8
|
100 95 91
|
55 70 72
|
2900
|
75.0
|
4.5
|
750
|
|
172
|
ISGB150-12.5
|
112 160 208
|
31.1 44.4 57.8
|
13.5 12.5 10
|
60 72 66
|
1450
|
11.0
|
3.5
|
200
|
|
173
|
ISGB150-12.5A
|
98 140 182
|
27.2 39 50.6
|
11 10 8.5
|
68 70 71
|
1450
|
7.5
|
3.5
|
180
|
|
174
|
ISGB150-20
|
112 160 208
|
31.1 44.4 57.8
|
23.5 20 14
|
66 71 66
|
1450
|
15.0
|
3.5
|
250
|
|
175
|
ISGB150-20A
|
98 140 182
|
27.2 39 50.6
|
19 17 11
|
65 70 66
|
1450
|
11.0
|
3.5
|
230
|
|
176
|
ISGB150-20B
|
84 120 156
|
23.3 33.3 43.3
|
15.5 14 10
|
62 70 68
|
1450
|
7.5
|
3.5
|
200
|
|
177
|
ISGB150-32
|
112 160 208
|
31.1 44.4 57.8
|
33 32 28
|
62 70 80
|
1450
|
22.0
|
3.5
|
280
|
|
178
|
ISGB150-32A
|
98 140 182
|
27.2 39 50.6
|
29 28 26.6
|
60 71 80
|
1450
|
18.5
|
3.5
|
270
|
|
179
|
ISGB150-32B
|
84 120 156
|
23.3 33.3 43.3
|
25 24 22.5
|
66 71 70
|
1450
|
15.0
|
3.5
|
250
|
|
180
|
ISGB150-50
|
112 160 208
|
31.1 44.4 57.8
|
52 50 42
|
60 72 80
|
1450
|
37.0
|
3.5
|
515
|
|
181
|
ISGB150-50A
|
98 140 182
|
27.2 39 50.6
|
46 44 39
|
60 70 80
|
1450
|
30.0
|
3.5
|
500
|
|
182
|
ISGB150-50B
|
84 120 156
|
23.3 33.3 43.3
|
41 38 30
|
66 70 73
|
1450
|
22.0
|
3.5
|
480
|
|
183
|
ISGB150-80
|
112 160 208
|
31.1 44.4 57.8
|
83 80 75
|
67 72 69
|
1450
|
55.0
|
3.5
|
900
|
|
184
|
ISGB150-80A
|
98 140 182
|
27.2 39 50.6
|
73 70 66
|
65 70 67
|
1450
|
45.0
|
3.5
|
765
|
|
185
|
ISGB150-80B
|
84 120 156
|
23.3 33.3 43.3
|
65 60 56
|
62 67 65
|
1450
|
37.0
|
3.5
|
660
|
|
186
|
ISGB150-80C
|
120 200 240
|
33.3 55.6 66.7
|
87 80 72
|
65 76 74
|
1450
|
75.0
|
4.2
|
710
|
|
187
|
ISGB150-80A
|
112 187 224
|
31.1 51.9 62.2
|
76 70 63
|
64 75 73
|
2900
|
55.0
|
4.2
|
560
|
|
188
|
ISGB150-80B
|
104 173 208
|
28.9 48.1 57.8
|
65 60 54
|
63 74 72
|
2900
|
45.0
|
4.2
|
465
|
|
189
|
ISGB150-125
|
120 200 240
|
33.3 55.6 66.7
|
133 125 120
|
58 73 75
|
2900
|
110.0
|
4.5
|
980
|
|
190
|
ISGB150-125A
|
112 187 224
|
31.1 51.9 62.2
|
116 110 105
|
57 72 74
|
2900
|
90.0
|
4.5
|
805
|
|
191
|
ISGB150-125B
|
104 173 208
|
28.9 48.1 57.8
|
100 95 91
|
55 70 72
|
2900
|
75.0
|
4.5
|
725
|
|
192
|
ISGB150-12.5(I)
|
140 200 260
|
38.9 55.6 72.2
|
13.8 12.5 10.6
|
68 78 78
|
1450
|
15.0
|
3.0
|
265
|
|
193
|
ISGB150-12.5(I)A
|
125 179 233
|
34.7 49.7 64.6
|
11 10 8.5
|
66 76 76
|
1450
|
11.0
|
3.0
|
245
|
|
194
|
ISGB150-20(I)
|
140 200 260
|
38.9 55.6 72.2
|
21.8 20 17
|
73 79 77
|
1450
|
18.5
|
3.0
|
300
|
|
195
|
ISGB150-20(I)A
|
129 184 240
|
35.8 51.2 66.7
|
18.5 17 14.4
|
72 78 76
|
1450
|
15.0
|
3.0
|
265
|
|
196
|
ISGB150-20(I)B
|
117 167 217.5
|
32.5 46.4 60.4
|
15.2 14 12
|
71 76 74
|
1450
|
11.0
|
3.0
|
245
|
|
197
|
ISGB150-32(I)
|
140 200 260
|
38.9 55.6 72.2
|
33.8 32 28
|
70 78 73
|
1450
|
30.0
|
3.5
|
410
|
|
198
|
ISGB150-32(I)A
|
131 187 243
|
36.4 51.9 67.5
|
29.5 28 24.5
|
69 77 77
|
1450
|
22.0
|
3.5
|
335
|
|
199
|
ISGB150-32(I)B
|
121 173 225
|
33.6 48.1 62.5
|
25 24 21
|
69 76 74
|
1450
|
18.5
|
3.5
|
310
|
|
200
|
ISGB150-50(I)
|
140 200 260
|
38.9 55.6 72.2
|
53 50 44
|
68 75 71
|
1450
|
45.0
|
3.5
|
500
|
|
201
|
ISGB150-50(I)A
|
131 187 243
|
36.4 51.9 67.5
|
46.6 44 38.3
|
67 74 70
|
1450
|
37.0
|
3.5
|
460
|
|
202
|
ISGB150-50(I)B
|
122 174 226.5
|
33.9 48.3 62.9
|
40.5 38 33
|
66 73 69
|
1450
|
30.0
|
3.5
|
435
|
|
203
|
ISGB150-50(I)C
|
112 160 208
|
31.1 44.4 57.8
|
34 32 28
|
71
|
1450
|
22.0
|
3.5
|
370
|
|
204
|
ISGB150-80(I)
|
140 200 260
|
38.9 55.6 72.2
|
84 80 75
|
62 69 67
|
1450
|
75.0
|
3.5
|
1050
|
|
205
|
ISGB150-80(I)A
|
131 187 243
|
36.4 51.9 67.5
|
73 70.5 66
|
61 68 66
|
1450
|
75.0
|
3.5
|
900
|
|
206
|
ISGB150-80(I)B
|
122 174 226.5
|
33.9 48.3 62.9
|
65 62 58
|
60 66 64
|
1450
|
55.0
|
3.5
|
780
|
|
207
|
ISGB150-80(I)C
|
112 160 208
|
31.1 44.4 57.8
|
56.5 54.5 51
|
58 64 62
|
1450
|
45.0
|
3.5
|
650
|
|
208
|
ISGB200-12.5
|
140 200 260
|
38.9 55.6 72.2
|
13.8 12.5 10.8
|
68 78 78
|
1450
|
15.0
|
3.0
|
270
|
|
209
|
ISGB200-12.5A
|
125 179 233
|
34.7 49.7 64.6
|
11 10 8.5
|
66 76 76
|
1450
|
11.0
|
3.0
|
245
|
|
210
|
ISGB200-20
|
140 200 260
|
38.9 55.6 72.2
|
21.8 20 17
|
73 79 77
|
1450
|
18.5
|
3.0
|
310
|
|
211
|
ISGB200-20A
|
129 184 240
|
35.8 51.2 66.7
|
18.5 17 14.4
|
72 78 76
|
1450
|
15.0
|
3.0
|
365
|
|
212
|
ISGB200-20B
|
117 167 217.5
|
32.5 46.4 60.4
|
15.2 14 12
|
71 76 74
|
1450
|
11.0
|
3.0
|
245
|
|
213
|
ISGB200-32
|
140 200 260
|
38.9 55.6 72.2
|
33.8 32 28
|
70 78 78
|
1450
|
30.0
|
3.5
|
420
|
|
214
|
ISGB200-32A
|
131 187 243
|
36.4 51.9 67.5
|
29.5 27 24.5
|
69 77 78
|
1450
|
22.0
|
3.5
|
350
|
|
215
|
ISGB200-32B
|
121 173 225
|
33.6 48.1 62.5
|
25 24 21
|
69 76 73
|
1450
|
18.5
|
3.5
|
320
|
|
216
|
ISGB200-50
|
140 200 260
|
38.9 55.6 72.2
|
53 50 44
|
68 75 71
|
1450
|
45.0
|
3.5
|
495
|
|
217
|
ISGB200-50A
|
131 187 243
|
36.4 51.9 67.5
|
46.6 44 38.3
|
67 74 70
|
1450
|
37.0
|
3.5
|
460
|
|
218
|
ISGB200-50B
|
122 174 226.5
|
33.9 48.3 62.9
|
40.5 38 33
|
73
|
1450
|
30.0
|
3.5
|
445
|
|
219
|
ISGB200-50C
|
112 160 208
|
31.1 44.4 57.8
|
34 32 28
|
71
|
1450
|
22.0
|
3.5
|
380
|
|
220
|
ISGB200-12.5
|
280 400 520
|
77.8 111.1 144
|
13.4 12.5 10.5
|
70 80 79
|
1450
|
22.0
|
4.0
|
385
|
|
221
|
ISGB200-12.5A
|
250 358 465
|
69.4 99.4 129.2
|
10.7 10 8.5
|
68 78 77
|
1450
|
18.5
|
4.0
|
470
|
|
222
|
ISGB200-20
|
280 400 520
|
77.8 111.1 144
|
22.2 20 14
|
75 80 72
|
1450
|
30.0
|
4.0
|
480
|
|
223
|
ISGB200-20A
|
250 358 465
|
69.4 99.4 129.2
|
19 17 13
|
73 78 70
|
1450
|
22.0
|
4.0
|
430
|
|
224
|
ISGB200-20B
|
226 322 419
|
62.8 89.4 116.4
|
15.5 14 10
|
70 75 73
|
1450
|
18.5
|
4.0
|
390
|
|
225
|
ISGB200-32
|
280 400 520
|
77.8 111.1 144
|
36 32 26
|
73 80 75
|
1450
|
55.0
|
4.0
|
680
|
|
226
|
ISGB200-32A
|
262 374 486
|
72.8 103.9 135
|
31.5 28 23
|
72 79 74
|
1450
|
45.0
|
4.0
|
560
|
|
227
|
ISGB200-32B
|
242 346 450
|
67.2 96.1 125
|
27.5 24 18.5
|
78
|
1450
|
37.0
|
4.0
|
535
|
|
228
|
ISGB200-50
|
280 400 520
|
77.8 111.1 144
|
54.5 50 39
|
75 81 77
|
1450
|
75.0
|
4.0
|
835
|
|
229
|
ISGB200-50A
|
262 352 486
|
72.8 103.9 135
|
48 44 35
|
73 80 75
|
1450
|
75.0
|
4.0
|
835
|
|
230
|
ISGB200-50B
|
242 346 450
|
67.2 96.1 125
|
42 38 29.6
|
72 78 74
|
1450
|
55.0
|
4.0
|
700
|
|
231
|
ISGB200-50C
|
224 320 416
|
62.2 88.9 115.6
|
34.9 32 25
|
70 76 72
|
1450
|
45.0
|
4.0
|
585
|
|
232
|
ISGB200-80
|
280 400 520
|
77.8 111.1 144
|
87 80 72
|
73 80 77
|
1450
|
132.0
|
4.0
|
1565
|
|
233
|
ISGB200-80A
|
262 374 486
|
72.8 103.9 135
|
76 70 63
|
72 79 76
|
1450
|
110.0
|
4.0
|
1415
|
|
234
|
ISGB200-80B
|
242 346 450
|
67.2 96.1 125
|
65 60 54
|
71 78 75
|
1450
|
90.0
|
4.0
|
1290
|
|
235
|
ISGB200-80C
|
224 320 416
|
62.2 88.9 115.6
|
62 56 48
|
70 76 74
|
1450
|
75.0
|
4.0
|
1050
|
|
236
|
ISGB200-125
|
280 400 520
|
77.8 111.1 144.4
|
135 125 104
|
79
|
1450
|
200.0
|
4.0
|
1680
|
|
237
|
ISGB200-125A
|
256 352 448
|
71.1 97.8 125
|
120 112 88
|
78
|
1450
|
200.0
|
4.0
|
1680
|
|
238
|
ISGB200-125B
|
224 320 416
|
62.2 88.9 115.6
|
104 96 72
|
77
|
1450
|
132.0
|
4.0
|
1450
|
|
239
|
ISGB250-12.5
|
400 650 670
|
111.1 152.8 186.1
|
13.5 12.5 11
|
78 82 78
|
1450
|
30.0
|
4.0
|
550
|
|
240
|
ISGB250-12.5A
|
368 506 607
|
102.2 140.6 168.7
|
11.6 10.8 9.5
|
74 80 76
|
1450
|
22.0
|
5.0
|
500
|
|
241
|
ISGB250-20
|
400 550 670
|
111.1 152.8 186.1
|
22.5 20 16
|
78 82 84
|
1450
|
45.0
|
5.0
|
620
|
|
242
|
ISGB250-20A
|
368 506 607
|
102.2 140.6 168.7
|
19.5 17 14.6
|
80
|
1450
|
37.0
|
5.0
|
550
|
|
243
|
ISGB250-32
|
400 550 670
|
111.1 152.8 186.1
|
36 32 26
|
77 80 81
|
1450
|
75.0
|
5.0
|
915
|
|
244
|
ISGB250-32A
|
368 506 607
|
102.2 140.6 168.7
|
31.5 28 23
|
78
|
1450
|
55.0
|
5.0
|
840
|
|
245
|
ISGB250-32B
|
339 466 559
|
94 129.3 155.2
|
26.5 25 20
|
76
|
1450
|
45.0
|
5.0
|
695
|
|
246
|
ISGB250-50
|
400 550 670
|
111.1 152.8 186.1
|
54.5 50 39
|
69 76 72
|
1450
|
110.0
|
5.0
|
1557
|
|
247
|
ISGB250-50A
|
368 506 607
|
102.2 140.6 168.7
|
48 44 35.5
|
68 74 70
|
1450
|
90.0
|
5.0
|
1055
|
|
248
|
ISGB250-50B
|
339 466 559
|
94 129.3 155.2
|
43 39.5 32.5
|
66 72 68
|
1450
|
75.0
|
5.0
|
910
|
|
249
|
ISGB250-50C
|
311 428 514
|
86.5 119 142.8
|
38 35 28
|
63 69 65
|
1450
|
75.0
|
5.0
|
910
|
|
250
|
ISGB250-70
|
400 550 670
|
111.1 152.8 186.1
|
76 70 63
|
75 76 78
|
1450
|
160.0
|
5.0
|
1545
|
|
251
|
ISGB250-70A
|
368 506 607
|
102.2 140.6 168.7
|
65 60 54
|
74 75 77
|
1450
|
132.0
|
5.0
|
1355
|
|
252
|
ISGB250-70B
|
339 466 559
|
94 129.3 155.2
|
55 50 42
|
73 74 74
|
1450
|
90.0
|
5.0
|
1055
|
|
253
|
ISGB250-70C
|
311 428 514
|
86.5 119 142.8
|
49.5 44 38
|
71 72 73
|
1450
|
75.0
|
5.0
|
965
|
|
254
|
ISGB250-80
|
500 550 670
|
111.1 152.8 186.1
|
84 80 70
|
73 77 75
|
1450
|
200.0
|
5.0
|
1750
|
|
255
|
ISGB250-80A
|
368 506 670
|
102.2 140.6 168.7
|
75 71 62.5
|
72 75 74
|
1450
|
160.0
|
5.0
|
1560
|
|
256
|
ISGB250-80B
|
339 465 559
|
94 129.3 155.2
|
66.5 63.5 55.5
|
70 73 72
|
1450
|
132.0
|
5.0
|
1420
|
|
257
|
ISGB250-80C
|
311 428 514
|
86.5 119 142.8
|
58 55 48.5
|
69 71 70
|
1450
|
110.0
|
5.0
|
1350
|
|
258
|
ISGB300-12.5
|
500 720 860
|
138.9 200 238.9
|
13.5 12.5 10.5
|
78 83 78
|
1450
|
37.0
|
5.0
|
985
|
|
259
|
ISGB300-12.5A
|
460 662 791
|
127.8 184 219.8
|
12 11 9.3
|
77 82 77
|
1450
|
30.0
|
5.0
|
925
|
|
260
|
ISGB300-18
|
480 720 800
|
133.3 200 250
|
20 18 15.5
|
77 81 74
|
1450
|
55.0
|
5.0
|
1135
|
|
261
|
ISGB300-18A
|
438 607 821
|
121.7 182.5 228.1
|
16.5 15 13
|
75 79 72
|
1450
|
45.0
|
5.0
|
1040
|
|
262
|
ISGB300-18B
|
400 600 750
|
111.1 167.0 208.3
|
14 12.5 11
|
73 77 70
|
1450
|
37.0
|
5.0
|
900
|
|
263
|
ISGB300-20
|
500 720 900
|
138.9 200 250
|
23 20 16
|
80 73 84
|
1450
|
55.0
|
5.0
|
900
|
|
264
|
ISGB300-20A
|
460 662 791
|
127.8 184 219.8
|
20.2 17.5 14.2
|
81
|
1450
|
45.0
|
5.0
|
785
|
|
265
|
ISGB300-28
|
480 720 900
|
133.3 200 250
|
31 28 25
|
77 81 77
|
1450
|
75.0
|
5.0
|
1350
|
|
266
|
ISGB300-28A
|
444 666 833
|
123.3 185 231.4
|
26.5 24 21.5
|
76 80 76
|
1450
|
75.0
|
5.0
|
1350
|
|
267
|
ISGB300-28B
|
415 623 779
|
115.3 173.1 216.4
|
23 21 18.5
|
79
|
1450
|
55.0
|
5.0
|
1170
|
|
268
|
ISGB300-32
|
500 720 900
|
138.9 200 250
|
36 32 26
|
79 82.5 84
|
1450
|
90.0
|
5.0
|
1350
|
|
269
|
ISGB300-32A
|
460 662 791
|
127.8 184 219.8
|
30.5 28 23.5
|
74 80 74
|
1450
|
75.0
|
5.0
|
1250
|
|
270
|
ISGB300-32B
|
423 609 728
|
117.6 169.3 202.2
|
25.5 23.5 20
|
72 78 73
|
1450
|
55.0
|
5.0
|
1080
|
|
271
|
ISGB300-44
|
480 720 900
|
133.3 200 250
|
48 44 34
|
76 84 82
|
1450
|
132.0
|
5.0
|
1900
|
|
272
|
ISGB300-44A
|
444 666 833
|
123.3 185 231.4
|
41.4 38 30
|
80
|
1450
|
110.0
|
5.0
|
1700
|
|
273
|
ISGB300-44B
|
409 614 767
|
113.6 170.6 213.1
|
35 32 25
|
78
|
1450
|
90.0
|
5.0
|
1550
|
|
274
|
ISGB300-50
|
500 720 900
|
138.9 200 250
|
54.5 50 42
|
75 80 78
|
1450
|
132.0
|
5.5
|
1725
|
|
275
|
ISGB300-50A
|
460 662 791
|
127.8 184 219.8
|
47 44 36.5
|
74 79 77
|
1450
|
110.0
|
5.5
|
1520
|
|
276
|
ISGB300-50B
|
423 609 728
|
117.6 169.3 202.2
|
41 38 32
|
72 77 75
|
1450
|
90.0
|
5.5
|
1400
|
|
277
|
ISGB300-50C
|
389 561 670
|
108.2 155.7 186
|
35.5 33 27.5
|
69 74 72
|
1450
|
75.0
|
5.5
|
1250
|
|
278
|
ISGB300-65
|
500 720 900
|
138.9 200 250
|
71 65 58
|
75 81 82
|
1450
|
200.0
|
5.5
|
2150
|
|
279
|
ISGB300-65A
|
460 662 791
|
127.8 184 219.8
|
60 55 49
|
74 80 81
|
1450
|
160.0
|
5.5
|
1730
|
|
280
|
ISGB300-65B
|
423 609 728
|
117.6 169.3 202.2
|
49 45 35
|
73 79 80
|
1450
|
110.0
|
5.5
|
1630
|
|
281
|
ISGB300-65C
|
389 561 670
|
108.2 155.7 186
|
42 38 30
|
72 78 79
|
1450
|
90.0
|
5.5
|
1500
|
|
282
|
ISGB300-80
|
500 720 900
|
138.9 200 250
|
84 80 72
|
74 80 75
|
1450
|
250.0
|
5.5
|
2280
|
|
283
|
ISGB300-80A
|
460 662 791
|
127.8 184 219.8
|
74 70.5 63.5
|
73 79 74
|
1450
|
200.0
|
5.5
|
2150
|
|
284
|
ISGB300-80B
|
423 609 728
|
117.6 169.3 202.2
|
65 62 56
|
71 77 72
|
1450
|
160.0
|
5.5
|
1980
|
|
285
|
ISGB300-80C
|
389 561 670
|
108.2 155.7 186
|
57 54.5 49
|
68 75 70
|
1450
|
132.0
|
5.5
|
1850
|
|
286
|
ISGB350-12.5
|
718 1080 1345
|
199.4 300 373.6
|
15 12.5 11
|
75 83 81
|
970
|
55.0
|
5.5
|
1200
|
|
287
|
ISGB350-12.5A
|
663 995 1245
|
184.2 276.4 345.8
|
12 10 8.5
|
72 81 79
|
970
|
45.0
|
5.5
|
1020
|
|
288
|
ISGB350-20
|
718 1080 1345
|
199.4 300 373.6
|
23.5 20 18
|
76 82 80
|
970
|
90.0
|
5.5
|
1450
|
|
289
|
ISGB350-20A
|
663 995 1245
|
184.2 376.4 345.8
|
20 17 15
|
74 80 78
|
970
|
75.0
|
5.5
|
1320
|
|
290
|
ISGB350-20B
|
620 931 1165
|
172.2 258.6 323.6
|
17.5 15 13
|
71 78 77
|
970
|
55.0
|
5.5
|
1150
|
|
291
|
ISGB350-32
|
718 1080 1345
|
199.4 300 373.6
|
36.4 32 28.5
|
79 83 78
|
1450
|
132.0
|
5.5
|
2150
|
|
292
|
ISGB350-32A
|
663 995 1245
|
184.2 276.4 345.6
|
30.5 27 25
|
74 81 76
|
1450
|
110.0
|
5.5
|
2000
|
|
293
|
ISGB350-32B
|
620 931 1165
|
172.2 258.6 323.6
|
26.5 24 21
|
73 79 75
|
1450
|
90.0
|
5.5
|
1850
|
|
294
|
ISGB350-40
|
718 1080 1345
|
199.4 300 373.6
|
44.6 40 34.6
|
82
|
1450
|
160.0
|
5.5
|
1700
|
|
295
|
ISGB350-40A
|
642 965 1200
|
178.6 268.1 334.2
|
35.7 32 27.7
|
80
|
1450
|
132.0
|
5.5
|
1500
|
|
296
|
ISGB350-40B
|
600 900 1120
|
166.7 250 311.4
|
31.2 28.2 24.6
|
78
|
1450
|
110.0
|
5.5
|
1300
|
|
297
|
ISGB350-50
|
718 1080 1345
|
199.4 300 373.6
|
54.7 50 44.2
|
78 83 77
|
1450
|
200.0
|
5.5
|
2300
|
|
298
|
ISGB350-50A
|
663 995 1245
|
184.2 276.4 345.8
|
48.3 44 36.8
|
77 81 76
|
1450
|
160.0
|
5.5
|
2100
|
|
299
|
ISGB350-50B
|
620 931 1165
|
172.2 258.6 323.6
|
42.5 38 32.3
|
79
|
1450
|
132.0
|
5.5
|
1950
|
|
300
|
ISGB350-60
|
718 1080 1345
|
199.4 300 373.6
|
64.8 60 55
|
82
|
1450
|
250.0
|
5.5
|
2500
|
|
301
|
ISGB350-60A
|
663 995 1245
|
184.2 376.4 345.8
|
59.2 54 48
|
80
|
1450
|
200.0
|
5.5
|
2250
|
|
302
|
ISGB350-60B
|
620 931 1165
|
172.2 258.6 323.6
|
51.3 46.9 41.3
|
78
|
1450
|
160.0
|
5.5
|
2100
|
|
303
|
ISGB350-12.5(I)
|
1000 1200 1450
|
277.8 33.3 402.8
|
13.5 12.5 10.5
|
76 80 77
|
970
|
55.0
|
6.0
|
1250
|
|
304
|
ISGB350-12.5(I)A
|
900 1080 1300
|
250 300 361
|
11.5 10.5 9
|
76 80 76
|
970
|
45.0
|
6.0
|
1150
|
|
305
|
ISGB350-20(I)
|
1000 1200 1450
|
277.8 333.3 402.8
|
23 20 16
|
76 80 76
|
970
|
90.0
|
6.0
|
1580
|
|
306
|
ISGB350-20(I)A
|
900 1080 1300
|
250 300 361
|
19 17 14
|
73 78 74
|
970
|
75.0
|
6.0
|
1350
|
|
307
|
ISGB350-32(I)
|
1000 1200 1450
|
277.8 333.3 402.8
|
36 32 26
|
74 78 75
|
1450
|
160.0
|
6.0
|
1870
|
|
308
|
ISGB350-32(I)A
|
900 1080 1300
|
250 300 361
|
31.5 28 23
|
72 76 73
|
1450
|
132.0
|
6.0
|
1720
|
|
309
|
ISGB350-32(I)B
|
745 985 1182
|
207 273 328
|
27 25 20
|
71 75 72
|
1450
|
110.0
|
6.0
|
1650
|
|
310
|
ISGB350-50(I)
|
1000 1200 1450
|
277.8 333.3 402.8
|
55 50 43
|
70 74 72
|
1450
|
250.0
|
6.0
|
2350
|
|
311
|
ISGB350-50(I)A
|
900 1080 1300
|
250 300 361
|
47.5 44 38
|
68 72 70
|
1450
|
200.0
|
6.0
|
2100
|
|
312
|
ISGB350-50(I)B
|
745 985 1182
|
207 273 328
|
42 38.5 34
|
60 70 68
|
1450
|
160.0
|
6.0
|
2000
|
■ ISGB型便拆式管道离心泵启动、运行与停车：
起动前准备
1、用手拨转泵轴或泵联轴器，叶轮应无卡磨现象，转动灵活。
2、打开进口阀门，打开排气阀使液体充满整个泵腔，然后关闭排气阀。^
3、用手盘动泵轴以使润滑液进入机械密封端面。
4、点动电机，确定转向是否正确。
起动与运行
1、全开进口阀门，关闭吐出管路阀门。
2、接通电源，当泵达到正常转速后，再逐渐打开吐出管路上阀门，并调节到所需工况。
3、注意观察仪表读数，检查轴封泄漏情况，正常时机械密封泄漏量≤3滴/分，检査电机、轴承处温升≤70℃， 如果发现异常情况，应及时处理。
停车
1、逐渐关闭吐出管路阀门，切断电源。
2、关闭进口阀门。
3、如环境温度低于0℃，应将泵内液体放尽，以免冻裂。
4、如长期停用.应将泵拆卸清洗.包装保管。
■ ISGB型便拆式管道离心泵维修与保养：
运行中的维护与保养
1、迸水管路必须高度密封。
2、禁止泵在汽蚀状态下长期运行。
3、禁止离心泵在大流量运行时，电机超电流长期运行。
4、定时检査泵运行中电机电流值，不得超过电机额定电流。
5、泵在运行过程中应有专人看管，以免发生意外。
6、泵每运行500小时应对轴承迸行加油。电机功率大于11KW配有加油装置.可用高压油枪直接注入，以保证轴承润滑优良。
7、泵迸行长期运行后，由于机械磨损，使机组噪声及振动增大吋，应停车检査，必要吋可更換易损零件及轴承，机组大修期一般为一年。
机械密封维护与保养
1-机械密封润滑应清洁无固体颗粒。2、严禁机械密封在干磨惰况下工作。
3、起动前应盘动泵(电机)几圈，以免突然起动造成密封环断裂损坏。 |
